LED Light Source

Endoscope LED Cold Light Source high brightness

YOUTAK-GW101 can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.

Model: YOUTAK-GW101

Brand: Shrek

Product Type: LED Light Source

Warranty: Five years

Leave A Message Live Chat +86-21-58189111

1. High brightness output, using high-power LED light source to meet the lighting needs of deep cavities and complex anatomical structures.

2. Supports multi-level brightness adjustment to adapt to different surgical procedures and ambient light conditions.

3. Cold light technology, through high-efficiency heat filtering system and optical fiber transmission, the infrared and ultraviolet components of the output light are extremely low to avoid tissue burns.

Advantage

High brightness is comparable to 350W traditional xenon light source, could be used for all rigid endoscope surgery without any problem.
Long working life, it could last more than 40000 hours, 120 times of xenon, so you do not need to replace the bulb for years.
Wide range power from 100-240V/AC; 50/60 Hz.
Perfect color temperature 5000K to 6500K, color rendering is over 70.
Does not emit light in UV or IR.
Customized connector, it accepts fiber light guides with active areas ranging from 3 mm to 10 mm diameter.

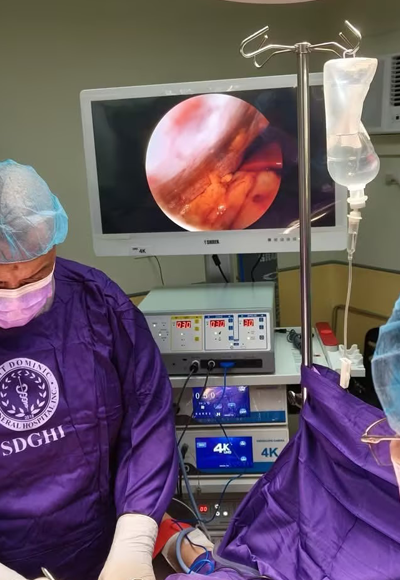

Gallery

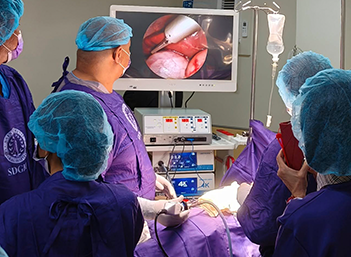

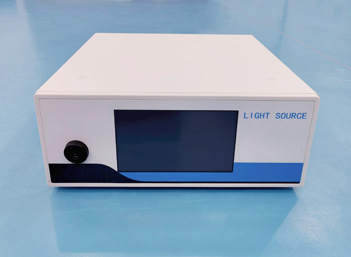

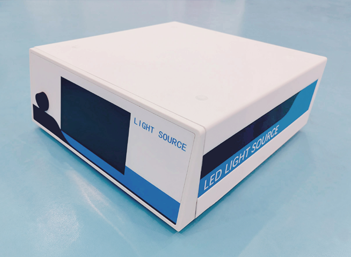

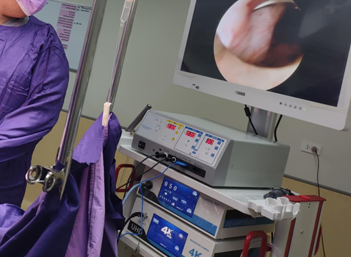

Endoscope LED Cold Light Source high brightness Gallery

Parameter

Input power	150VA
Power supply	AC100-240V 50/60Hz
Light source	LED light
Effective light power	≥150mW
Brightness	≥1,200,000lx
Color temperature	6000±500K
Noise	≤55dB(A)
Surface temperatures	≤60℃
Light out	Diameter: (10±0.10)mm
Host fuse	T2AL 250V AC
Working environment	5℃~40℃

Recommended Surgical Departments
