SY-GWGX200 is mainly used in Orthopedic, Gynecological and Urological surgeries. Due to its suction function, it can also be used for laparoscopy.

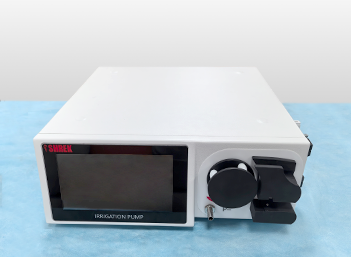

Model: SY-GWGX200
Brand: SHREK
Product Type: Irrigation Pump
Warranty: Three Years

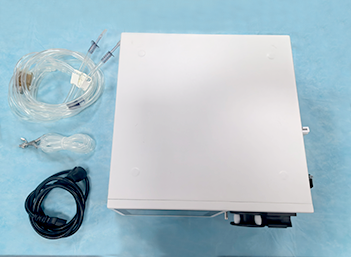

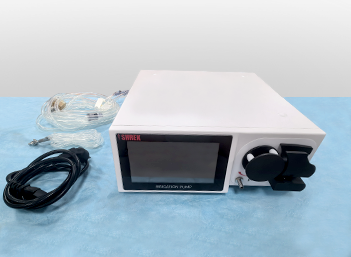

1. It consists of a main unit, a silicone tube, a replacement short tube, and sensing diaphragms.
2. It is suitable for liquid perfusion during surgical operations such as Urological endoscopes, Gynecological Hysteroscopes, and Arthroscopy, etc.
Sterile tubing sets with sensor, a peristaltic pump, with two channels
High sensitivity pressure sensor
Use roller pump to get large flow
Irrigation tube can be autoclaved
Pressure is adjustable on request and real time monitored
Can be used for different surgery
| lrrigation Pressure Range | 50-400mmHg (6.7-53.3kPa) |
| lrrigation Flow Range | 0.1-1.2L/min |
| Suction Pressure Range | 5-30kPa |
| Power | ~100-240V,50/60Hz |
| Input Power | 100VA |
| Total Noise of the Host | ≤50dB |
